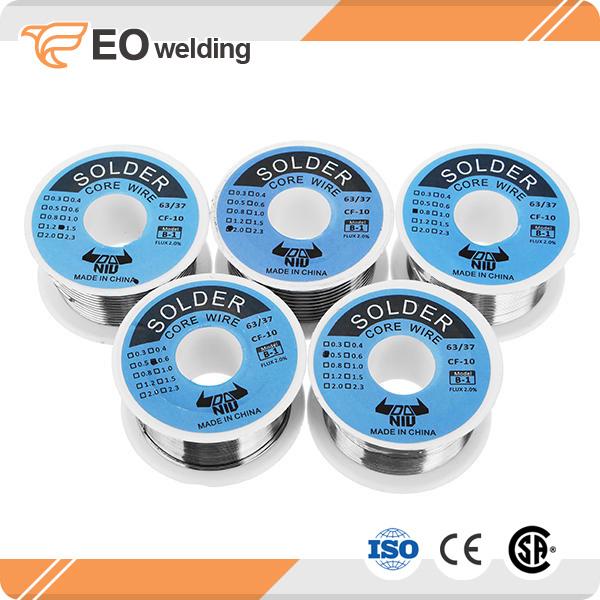

Product Name: Sn 50 pb 50 2mm aluminium solder wire
Material: 50% Tin and 50% Lead
Diameter: 2.0mm
OEM: Available
Free Sample: Available
Supply Ability: 6 Ton/Tons per Week
Payment Terms: T/T, L/C, PayPal, West Union
Product name | Sn 50 pb 50 2mm aluminium solder wire |
Material | 50% Tin and 50% Lead |
Diameter | 2.0mm |
Melting Point | 183-216℃ |
Weight | 100-1000g/reel |
Flux Content | 1.8-2.4% |
Shape | Solder wire |
Color | Silver grey |
Composition | 50% Tin and 50% Lead |
Flux core | Special flux for aluminium soldering |
1. Composition: Tin and Lead
2. Diameter of solder wire: From 0.5mm to 3.0mm are available.
3. Melting temperature and Working temperature:
Alloy Composition (wt%) | Melting Temperature ℃ | Working Temperature ℃ | Working Method |
Sn63/Pb37 | 183 | 245-255 | Wave Soldering |
Sn60/Pb40 | 183~190 | 250-260 | Hot-Dip Soldering |
Sn55/Pb45 | 183~203 | 255-270 | Hot-Dip Soldering |
Sn50/Pb50 | 183~216 | 260-275 | Hot-Dip Soldering |
Sn45/Pb55 | 183~227 | 270-300 | Hot-Dip Soldering |
Sn40/Pb60 | 183~238 | 280-310 | Hot-Dip Soldering |
Sn35/Pb65 | 183~247 | 290-330 | Hot-Dip Soldering |
Sn30/Pb70 | 183~255 | 295-335 | Hot-Dip Soldering |
Sn25/Pb75 | 183~266 | 300-350 | Hot-Dip Soldering |
Sn20/Pb80 | 183~280 | above 350 | Hot-Dip Soldering |
4. Features: a) Smokeless, Little splash, Bright and Stable spot.
b) No corrosion, high insulation resistance and no-clean.
c) Little residues, Good wettability and excellent oxidation resistance.
d) Quick melting speed and good fluidity
5. Solder wire Specification:
Item | Sn 50 pb 50 2mm aluminium solder wire | ||||||||
Flux content (%) | 1.8-2.4% | ||||||||
Specific gravity | 9.3 | ||||||||
Melting point | 183-216℃ | ||||||||
Usage | Suitable for use with soldering irons and soldering stations | ||||||||
Storage information and warrantee period | Store in a cool, dry, non-corrosive environment. Product warrantee period of 1 years | ||||||||
Chemical composition of solder alloy |
|
|
|
|
|
|
| ||
Metal element | Sn | Pb |
|
|
|
|
|
|
|
Composition (%) | Balanced | 49.9 |
|
|
|
|
|
|
|
Maximum threshold of impurities in solder alloy |
|
|
|
|
|
|
| ||
Metal element | Bi | Zn | Fe | Al | As | Cd | Cu | Sb | |
Composition (%) | 0.027 | 0.002 | 0.007 | 0.007 | 0.03 | 0.002 | 0.04 | 0.12 | |
Notes: This product and all components are compliant with GB/T 3131-2001 | |||||||||
Sn 50 pb 50 2mm aluminium solder wire application：
Widely used in Aluminium soldering by soldering irons
Packaging Details
Single core plastic wire spool tin coil
1. Weight in reel: 100g, 125g, 250g, 1LB, 500g, 900g and 1KG/REEL are available.
2. Weight in tube: 12g, 15g, 17g and 20g/tube are available.
3. Package: For the reels,10kg/box, 20kg or 40kg/carton; For the tube, 500pcs or 600pcs/carton.
All the cartons are exporting double corrugated carton, wrapped by PVC stripes to avoid damage during transportation.
Delivery Time
10-20days after receiving the deposit
Our Services
1. Reply your inquiry in 24 working hours.
2. Experienced staffs answer all your questions in fluent English.
3. Customize is available, OEM&ODM are welcome.
FAQ
1. Where are your customers come from?
We have current customers from Peru, U.A.E, Bangladesh, Cambodia, Philippines, HongKong, Ecuador, Kenya, United Kingdom and USA.
Potential customers from Ireland, Greece, Turkey, Nigeria, Thailand, Colombia, Brazil, Chile and so on
2. Do you have repeat orders from your customers?
Yes, we have been keeping good relationships with our customers and have several repeat orders from USA, UK, Ecuador, Philippines, Cambodia, UAE, Bangladesh, Peru and HongKong customers.
