PCB Board Assembly Tin Lead Wave Soldering Bar

PCB Board Assembly Tin Lead Wave Soldering Bar

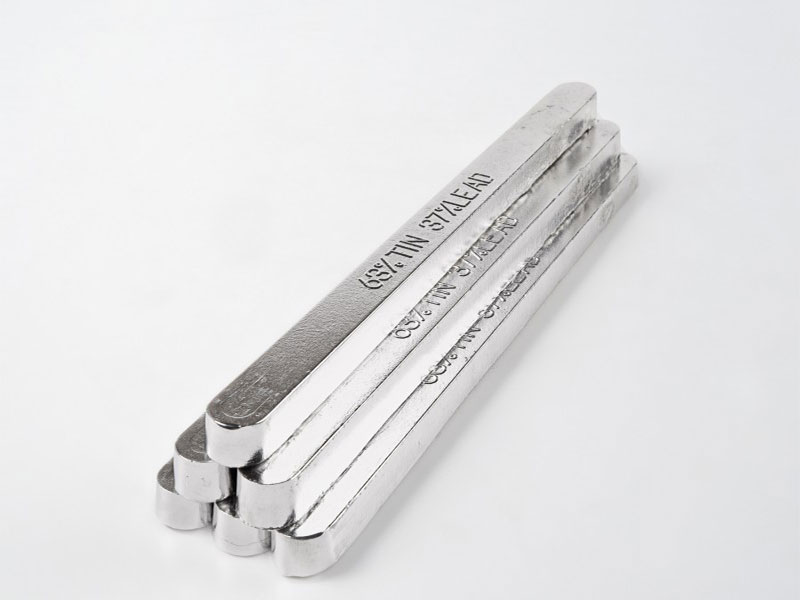

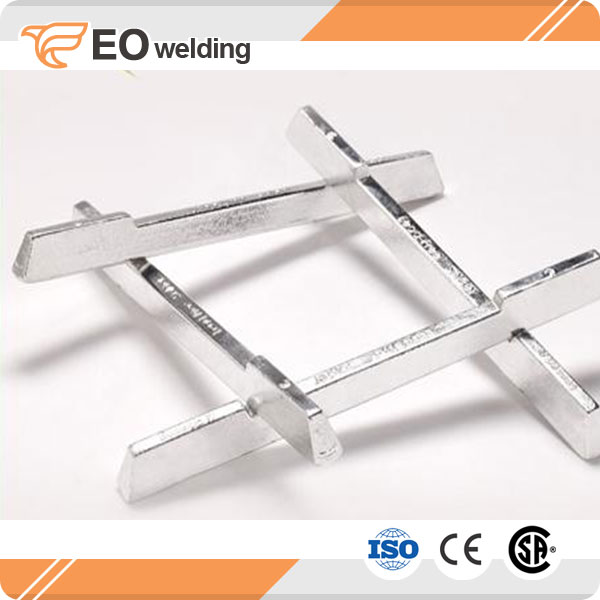

Product Name: PCB board assembly Tin lead wave soldering bar
Material: 63% tin and 37% lead alloy
Free Sample: Available
Supply Ability: 8 Ton/Tons per Week
Payment Terms: T/T, L/C, PayPal, West Union

Send Inquiry

Product Details

Product Details


Length:

28.5cm

Operating Current:

International standard

Welding Current:

International standard

Operating Temperature:

245-255℃

Diameter:

1.8cm*1.3cm

Color:

Silver grey

Shape:

Rectangle of bar or stick

Composition:

63% Tin and 37% Lead

Melting point:

183℃

Working tools:

Solder pot

Dimension:

28.5cm*1.8cm*1.3cm,around 500grams/pc




标签1-Description .png


Alloy Composition(wt%)

Melting Temperature ℃

Working Temperature ℃

Working Method

Sn63/Pb37

183

245-255

Wave Soldering

Sn60/Pb40

183~190

250-260

Hot-Dip Soldering

Sn55/Pb45

183~203

255-270

Hot-Dip Soldering

Sn50/Pb50

183~216

260-275

Hot-Dip Soldering

Sn45/Pb55

183~227

270-300

Hot-Dip Soldering

Sn40/Pb60

183~238

280-310

Hot-Dip Soldering

Sn35/Pb65

183~247

290-330

Hot-Dip Soldering

Sn30/Pb70

183~255

295-335

Hot-Dip Soldering

Sn25/Pb75

183~266

300-350

Hot-Dip Soldering

Sn20/Pb80

183~280

above 350

Hot-Dip Soldering







Product Specification


Item

Wave soldering bar HW0101

Flux content(%)

-

Specific gravity

8.3

Melting point

183℃

Usage

Suitable for use with standard wave    soldering/solder posts

Storage information and warrantee period

Store in a cool, dry, non-corrosive environment.    Product warrantee period of 1 years

Chemical composition of solder alloy













Metal element

Sn

Pb













Composition(%)

Balanced

37.5













Maximum threshold of impurities in solder alloy











Metal element

Bi

Zn

Fe

Al

As

Cd

Cu

Sb

Composition(%)

0.027

0.002

0.007

0.007

0.03

0.002

0.04

0.12

Notes: This product and all components are    compliant with GB/T 3131-2001






1. Dimension: 28.5cm*1.8cm*1.3cm, around 500grams/pc
2. Package: 25kgs/box, 2boxes/carton.
3. Dimension of box: 30.5cm*19.3cm*7cm.
4. Dimension of carton: 32cm*21cm*17cm.
5.10-20 days after receiving the deposit

All the cartons are exporting double corrugated carton, wrapped by PVC stripes to avoid damage during transportation.


Our Advantages:


  1. 1.Reply the inquiry within 24 hours.

2. As a manufacturer, we can offer much more competitive price than trade company

3. Good quality and professional suggestion

4. Delivery on time.

5. Various of Composition available.

6. Provide free Samples for testing.

7. Spectrum analyzer--technical support to help customers to analyze their samples.
